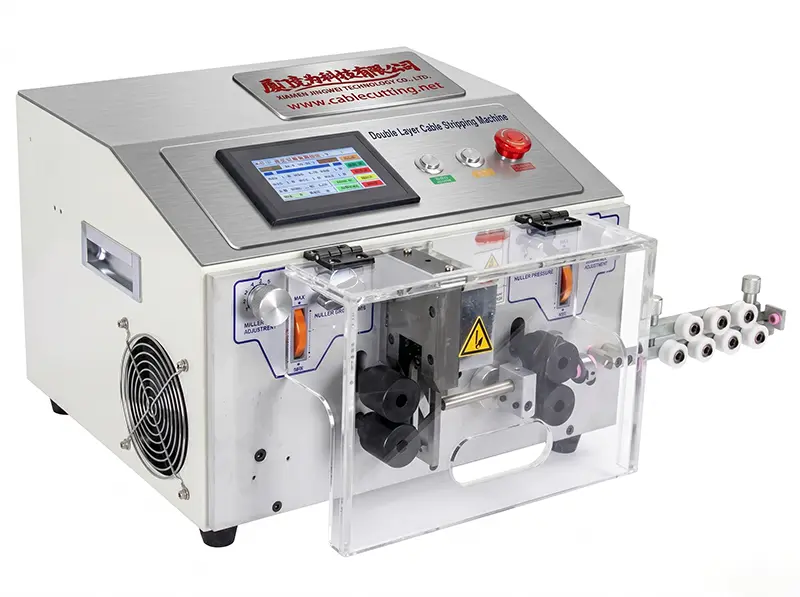

Automatic Double Layer Wire Stripping & Cutting Machine WPM-YHT3

• Model No: WPM-YHT3

• Specifications

  Model Number: WPM-YHT3

  Wire Diameter Range: 2-7mm

  Strip Cores: 2/3/4

  Cutting Length: 0.1mm-99999.9mm

  Stripping Length (Outer): Head: 1-120mm, Tail: 1-50mm

  Stripping Length (Core): Head: 0.1-30mm, Tail: 2-30mm

  Stripping Accuracy: 0.01mm

  Production Capacity: 1000-2000 pcs/h (L=200mm)

  Blade Material: Imported tungsten steel/high-speed steel

  Air Pressure: 0.8 Mpa

  Power: AC110V/220V 50/60HZ 300W

  Dimensions: 420mm*460mm*335mm

  Weight: 38kg

  Functions: Automatic entry/exit, timing start, jog adjustment
