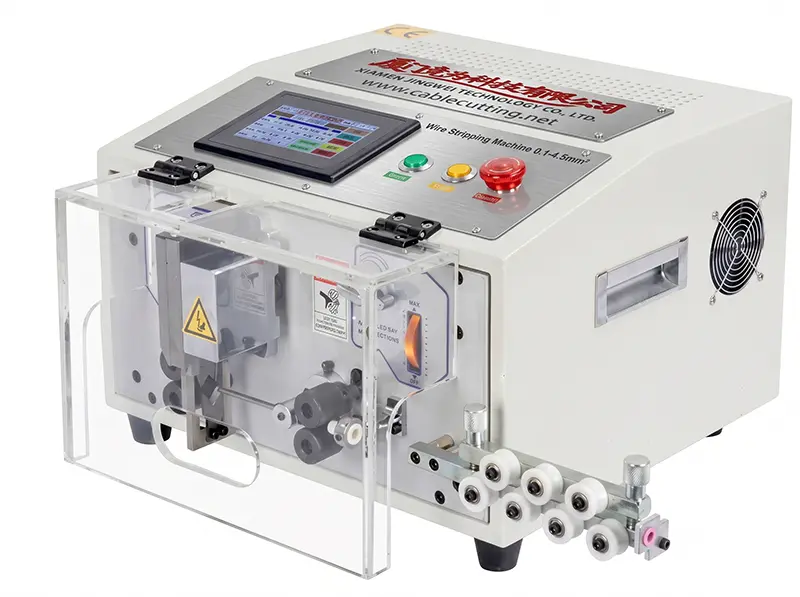

Touch Screen Automatic Wire Stripping Machine 0.1-4.5mm² WPM-SDS
Touch Screen Automatic Wire Stripping Machine 0.1-4.5mm² WPM-SDS Thumb
Video Thumbnail

Touch Screen Automatic Wire Stripping Machine 0.1-4.5mm² WPM-SDS

  • Model No: WPM-SDS

  • Specifications

    Model Number: WPM-SDS
    Wire Cross-Section: 0.1-4.5mm² (AWG10-AWG28)
    Wire Length Range: 1mm-999mm
    Stripping Types: Full strip/half strip/middle strip
    Strip Length: Front 0-35mm, Rear 0-15mm
    Intermediate Peeling Times: 11 times
    Max Conduit Diameter: 6mm
    Processing Speed: 3000-8000pcs/hour
    Length Accuracy:
    Noise Level:
    Voltage Options: 220V/110V
    Control Type: Touch Screen
  • Inquiry now

WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire Peeling Machine  machine 0.1-4.5 mm2 AWG10-AWG28 220V 110V Optional Touch Screen Control
(RE: 1. WPM-SDS is with touch screen control.
2. Crystal Protect case is not included if needed plus an extra $90)

Product Description
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum, and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc. Function

Applications:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.

Technical parameters:

Model WPM-SDS
Wire cross-section 0. 1~4.5mm2
Wire length range 1mm~ 999mm
Stripping lengths Full strip/half strip/middle strip
Strip length Front end 0 - 35; rear end 0- 15mm.
Intermediate peeling times 11 times
Max conduit inside diameter 6mm
Transport speed 3000-8000pcs/hour
Length accuracy less than (0.002xL) mm
Noise level <70dB(A)
Gross weight 31kgs
Packing dimension 537*507*400mm
Operation interface English/Chinese
Wire material For PVC, Teflon, Braided, Fiberglass wire
Electrical connection 110V/220V 50HZ/60HZ 200W
WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire sample of WPM-SDS wire Stripping Cutting Machine for Computer automatic wire strip stripping, Wire Stripping Machine For Sale, Automatic Wire Cutting And Stripping Machine, Copper Wire
Touch Screen Auto Wire Stripper WPM-SDS

Send us your question about this product

Verification Code Image

Related products

Electric Slide Table CO₂ Laser Wire Stripping Machine CLS60-D

Electric Slide Table CO₂ Laser Wire Stripping Machine CLS60-D

Inquiry now

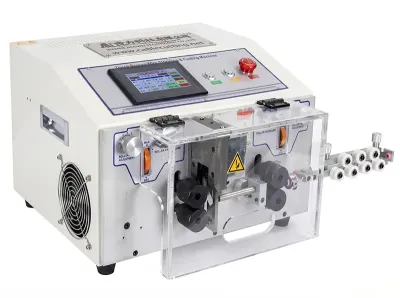

Touch Screen Wire Cutting Stripping Machine for Round Cables WPM-HT2S

Touch Screen Wire Cutting Stripping Machine for Round Cables WPM-HT2S

Inquiry now
Automatic High-Speed Computer Wire Stripping Machine WPM-SZ-330

Automatic High-Speed Computer Wire Stripping Machine WPM-SZ-330

Inquiry now

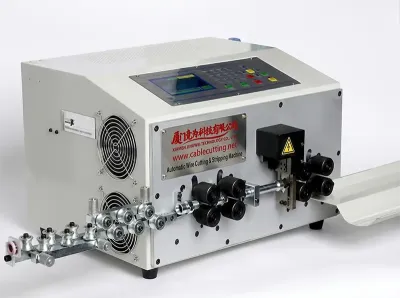

25mm² Automatic Wire Cutting & Stripping Machine WPM-MAX1-6
