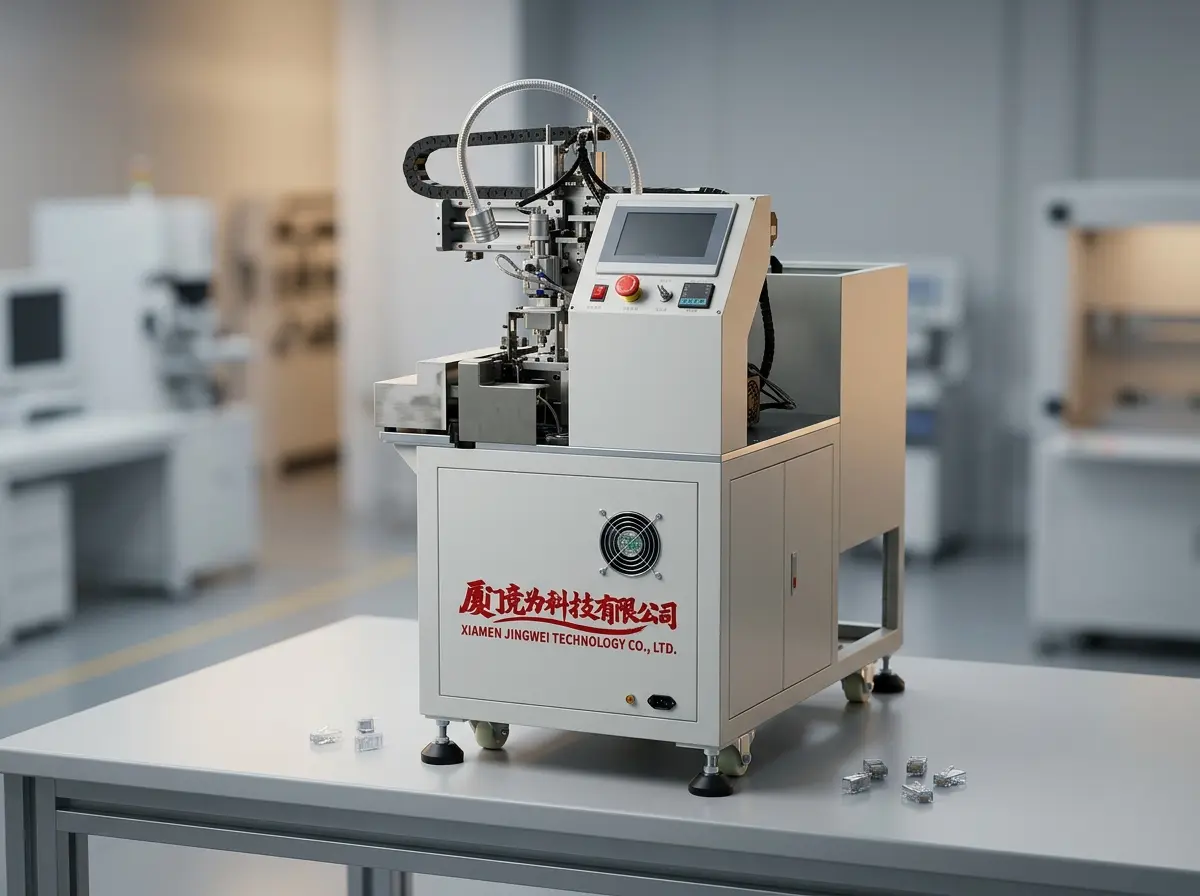

Automatic Crystal Head Riveting Press for RJ45 Connectors SJM01

High-Efficiency Automatic Crystal Head Threading & Riveting Press

Product Introduction

This automatic crystal head threading and riveting press is professionally developed for network cable plug crimping procedures. It integrates core wire straightening, trimming, automatic crystal head feeding, insertion and crimping into one continuous workflow, effectively lifting overall production efficiency and finished product uniformity.

Core Advantages

1.      Full Automatic Processing
Whole-process unmanned intervention from wire straightening to final crimping, greatly cutting manual workload.

2.      One-step Forming
All working procedures finished in a single cycle to shorten processing time and boost productivity.

3.      High Output Capacity
Hourly production reaches 500-700 pieces, suitable for mass cable assembly manufacturing.

4.      Flexible Parameter Adjustment
Stripping range: 10~20mm; Cutting length: 8~14mm, compatible with diverse network cable models.

5.      Stable & Compact Structure
Solid mechanical design ensures steady running and low failure rate; space-saving layout fits ordinary workshop placement.

Basic Information

l  Model: SJM01

l  Main Function: Automatic crystal head threading, inserting and riveting

l  Application: RJ45 network cable plug crimping

Technical Parameters

1.      Working Voltage: 220V 50Hz

2.      Rated Power: 700W

3.      Working Air Pressure: ≥0.5MPa

4.      Production Speed: 500~700 PCS/h

5.      Wire Stripping Size: 10~20mm

6.      Cutting Length: 8~14mm

7.      Machine Weight: 280KG

8.      Overall Dimension: 138012001500mm

Summary

SJM01 crystal head riveting machine optimizes network cable assembly flow, helping enterprises lower labor cost, stabilize product quality and improve production capacity. Ideal equipment for network cable processing production lines.
