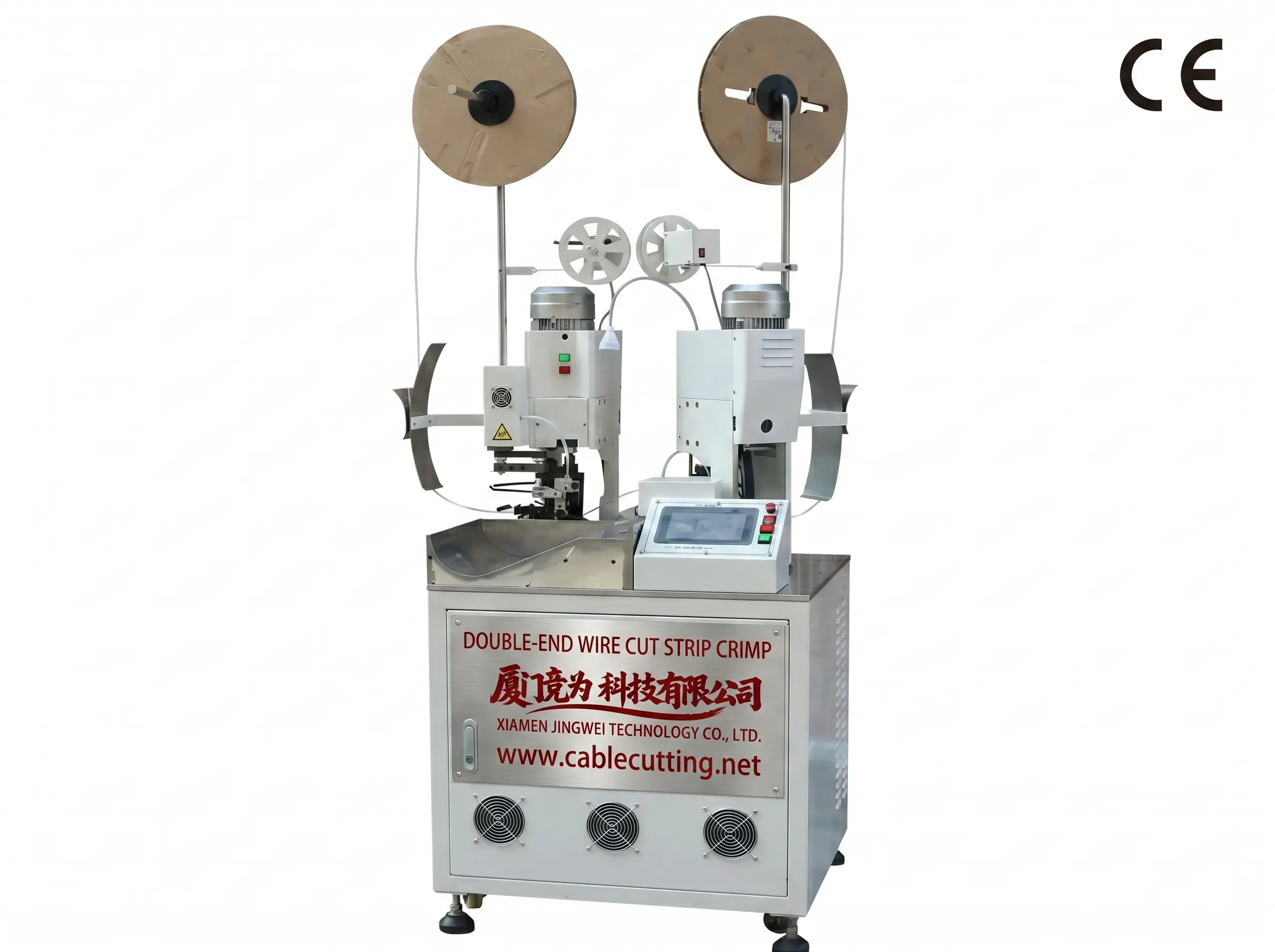

Automatic Double-End Wire Cut Strip Crimp Machine Wire Cut Strip Crimp Machine

• Model No: Wire Cut Strip Crimp Machine

• Specifications

  Size: 1000*800*1450mm

  Weight: 300kg

  Display: English LCD Touch screen

  Voltage: AC220/50Hz, AC110/60Hz Single phase

  Productivity: Both ends crimping: 4800pc/h

  Cutting Length: 40mm-9999mm

  Cutting Tolerance: 0.5mm+(L×0.002)

  Twisting Length: 2mm-20mm

  Stripping Length (Front-end): 1.00-15.00/25.00mm

  Stripping Length (back-end): 1.00-8.00mm

  Wire Range: AWG32#-AWG14#(0.05mm²-2.0mm²)

  Air pressure: 0.5 MPA

  Crimping force: 1.0T/1.5T/2.0T

  Available applicator: Side Applicator, End Applicator
