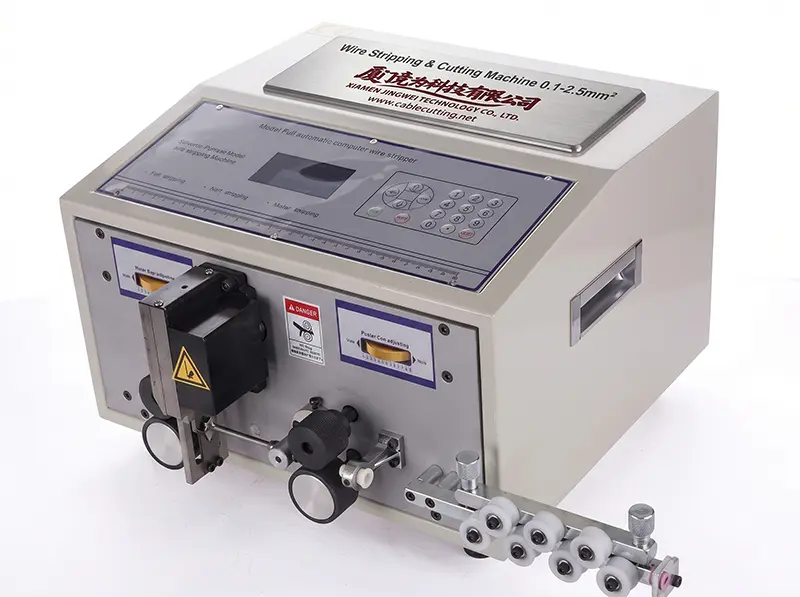

Automatic Wire Stripping & Cutting Machine WPM-09B

Name: Automatic Wire Stripping & Cutting Machine WPM-09B
Brand: JINGWEI
SKU: WPM-09B
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-09B
Specifications
Model Number: WPM-09B
Wire Cross-Section Range: 0.1～2.5mm²
Conduit Diameter: ￠6mm
Cutting Length: 1～9999mm
Cutting Tolerance: ± (0.002 × L)
Stripping Length: Head 0~35mm, Tail 0~15mm
Middle Stripping Sections: Max 11
Speed: 3000-8000pcs/h
Display: English LCD
Drive Mode: 2 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Small electrical wires, PVC tubes, PVC wires
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 160W
Dimensions: 390X350X255mm
Weight: 32kg
Inquiry now

Wire Stripper Machine, Wire Stripping Machine, Wire Cutting Stripping Machine WPM-09B
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.
Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1～2.5mm2
Conduit Diameter: ￠6mm
Cutting Length: 1～9999mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~35mm, tail 0~15mm
Middle Stripping Section: Max 11
Speed: 3000-8000pcs/h
Display Way: English LCD
Drive Mode: 2 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Small electrical wires, PVC tubes, PVC wires
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 160W
Measurement: 390X350X255mm
Weight: 32kg

Wire Stripper Machine, Wire Stripping Machine, Wire Cutting Stripping Machine
