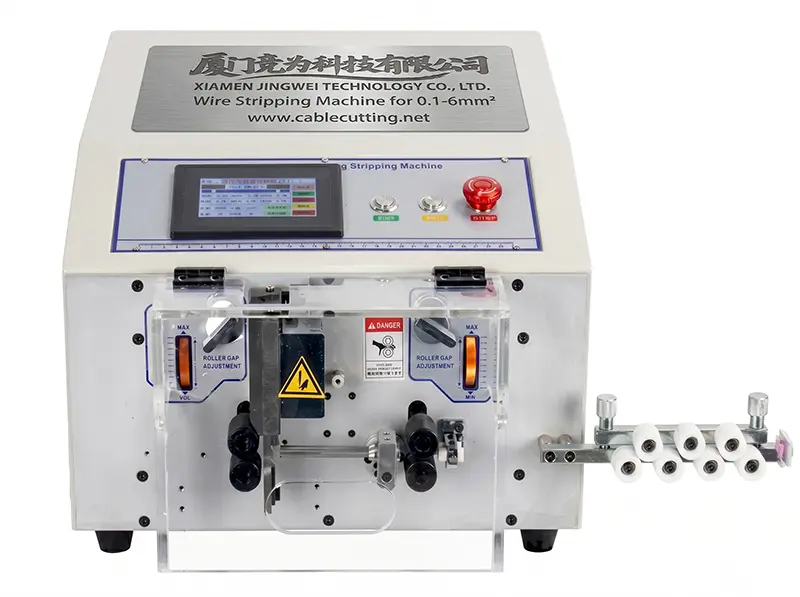

Touch Screen Automatic Wire Stripping Machine for 0.1-6mm² WPM-SDBS

Name: Touch Screen Automatic Wire Stripping Machine for 0.1-6mm...
Brand: JINGWEI
SKU: WPM-SDBS
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-SDBS
Specifications
Model Number: WPM-SDBS
Wire Cross-section Single Line: 0.1-4.5mm²
Wire Cross-section Two Lines: 0.1-2.5mm²
Wire Length Range: 1mm-999mm
Stripping Lengths: Full strip/half strip/middle strip
Strip Length Front End: 0-35mm
Strip Length Rear End: 0-15mm
Intermediate Peeling Times: 11 times
Max Conduit Inside Diameter: 6mm
Transport Speed: 5000-10000 pcs/hour
Length Accuracy: less than (0.002xL) mm
Noise Level:
Gross Weight: 31kgs
Packing Dimension: 537*507*400mm
Operation Interface: English/Chinese
Wire Material: PVC, Teflon, Braided, Fiberglass wire
Electrical Connection: 110V/220V 50HZ/60HZ 200W
Inquiry now

Touch Screen Automatic Cable Wire Cutting Stripping Machine For 0.1-6mm2 WPM-SDBS
WPM-SDB2S automatic wire stripping Machine compatible with single or double wires 0.1-6mm2 AWG10-AWG28 220V 110V Optional Touch Screen

Product Description
The product function characteristics:
Collection and integration, the microcomputer automatic computer for the stripline machine is a kind introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Our product is to use LCD screen man-machine dialogue mode, with a nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. The wire length can be set arbitrarily, thrum, and the line end parameters can also be according to the customer's request to change, different degrees of finish stripping wires, also has the high tension line of line, the casing of the shear, etc. Function

Applications:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, Teflon, glass wire, etc.

Technical parameters:
Model WPM-SDBS
Wire cross-section single line 0. 1~4.5mm²; two lines 0. 1~2. 5mm²
Wire length range 1mm~ 999mm
Stripping lengths Full strip/half strip/middle strip
Strip length Front end 0 - 35; rear end 0- 15mm.
Intermediate peeling times 11 times
Max conduit inside diameter 6mm
Transport speed 5000- 10000pcs/hour
Length accuracy less than (0.002xL) mm
Noise level <70dB(A)
Gross weight 31kgs
Packing dimension 537*507*400mm
Operation interface English/Chinese
Wire material For PVC, Teflon, Braided, Fiberglass wire
Electrical connection 110V/220V 50HZ/60HZ 200W
Touch Screen Automatic Cable Wire Cutting Stripping Machine For 0.1-6mm2 WPM-SDB2S Automatic Wire Stripping Machine, Cable Peeling Stripping Machine, Wire Cutting Stripping Machine

Touch Screen Automatic Cable Wire Cutting Stripping Machine For 0.1-6mm2 WPM-SDB2S Automatic Wire Stripping Machine, Cable Peeling Stripping Machine, Wire Cutting Stripping Machine

sample of Touch Screen Automatic Cable Wire Cutting Stripping Machine For 0.1-6mm2 WPM-SDB2S Automatic Wire Stripping Machine, Cable Peeling Stripping Machine, Wire Cutting Stripping Machine
