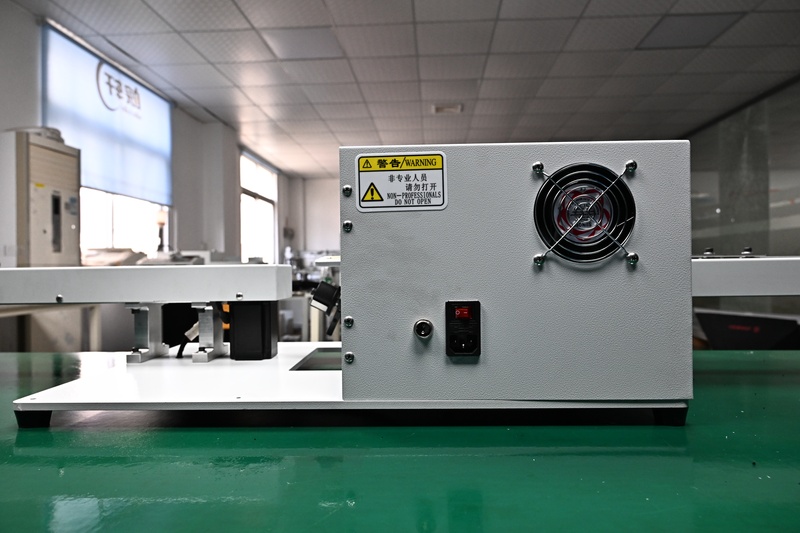

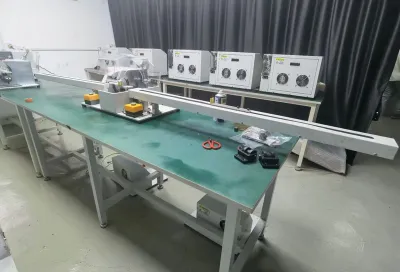

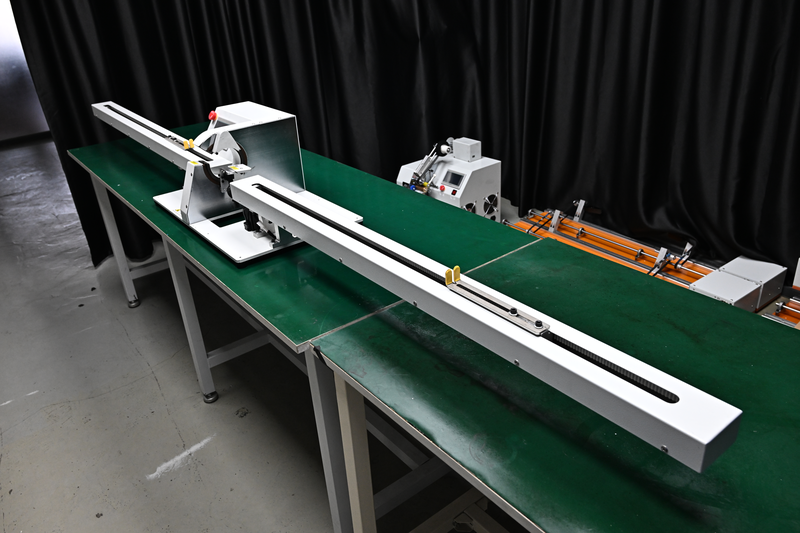

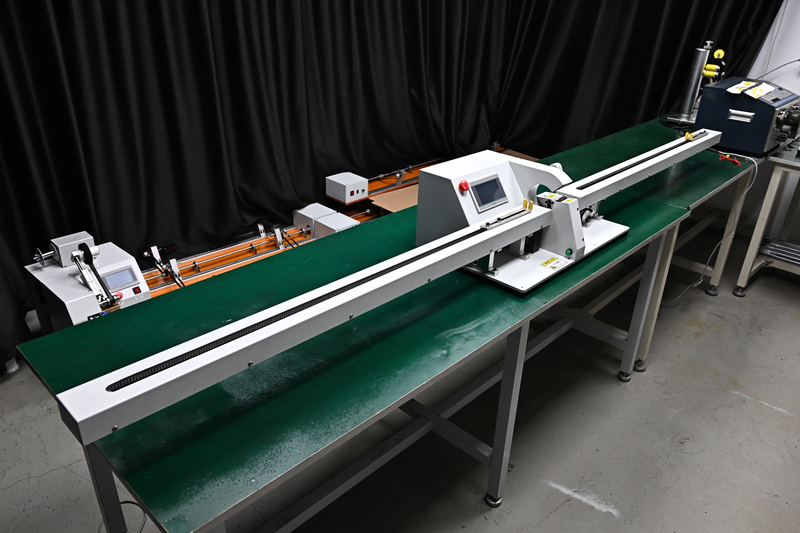

JW-303KL-1m Tape Winding Machine + Double-Side Wire Drawing

Machine Overview

Technical Parameters

• Machine Model: JW-303KL-1m

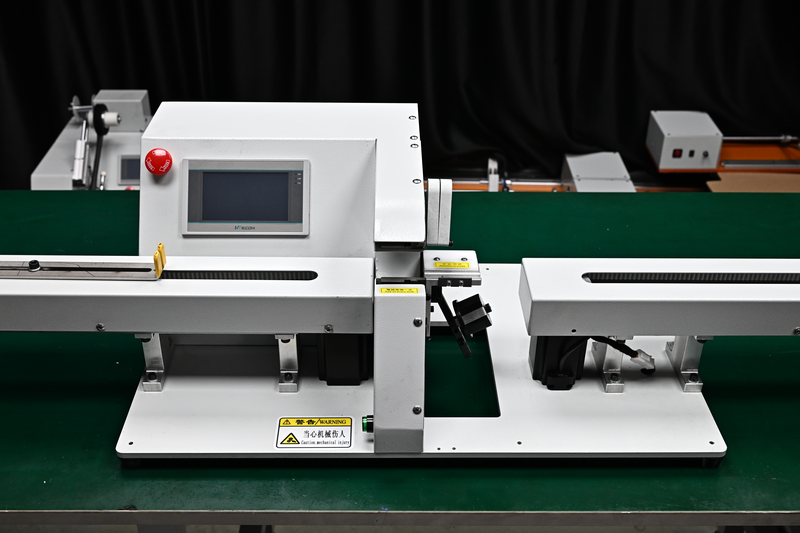

• Operation Method: Touch Screen
• Winding Mode: Spiral Winding
• Applicable Wire Diameter: Ф3mm-25mm
• Maximum Tape Outer Diameter: 110mm
• Tape Width: 9-30mm
• Winding Length: 1050mm (Customizable for longer or shorter lengths)
• Tape Winding Density: Adjustable via machine parameter setting
• Tape Inner Hole Size: Standard Ф38 (Other sizes such as Ф32, Ф76... need to be informed in advance)
• Main Machine Speed: 200-1400 rpm (Adjustable)
• Applicable Tapes: PVC, Flocked Tape, Cloth-Based Tape, High-Temperature Tape, Mica Tape, Ceramic Tape, etc.
• Voltage: AC220V/DC24V 50/60HZ, 110V Optional
• Machine Dimensions: 2780380280mm, Net Weight: 48KG
• Packaging Dimensions: Export Wooden Case 1790470440mm

Machine Functions

• Multiple Winding Modes: Supports full winding, spaced winding and spot winding. The overlap area of the tape is adjustable according to actual needs.
• High Precision Control: Achieves ±1mm accuracy for stop position, meeting the strict requirements of wire harness winding length and position control.
• Wide Application Scope: Suitable for collection wire harnesses, multi-branch wire harnesses, wire harnesses with specified tape winding lengths, and multi-section wire harnesses that require precise stop positions.
