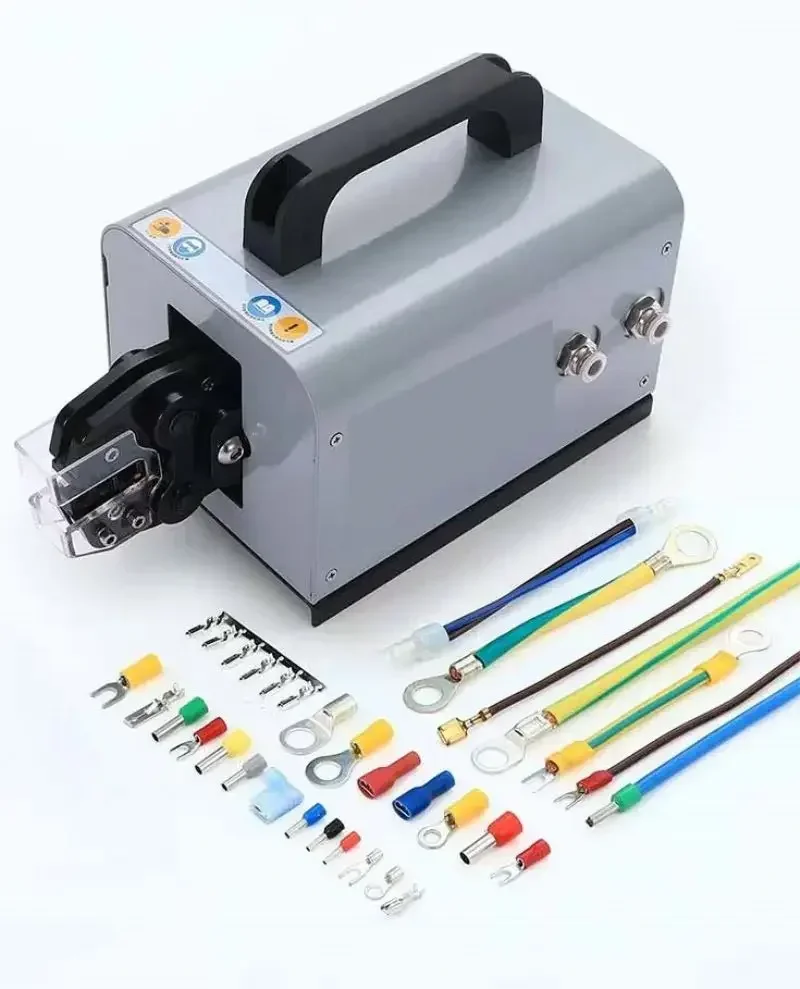

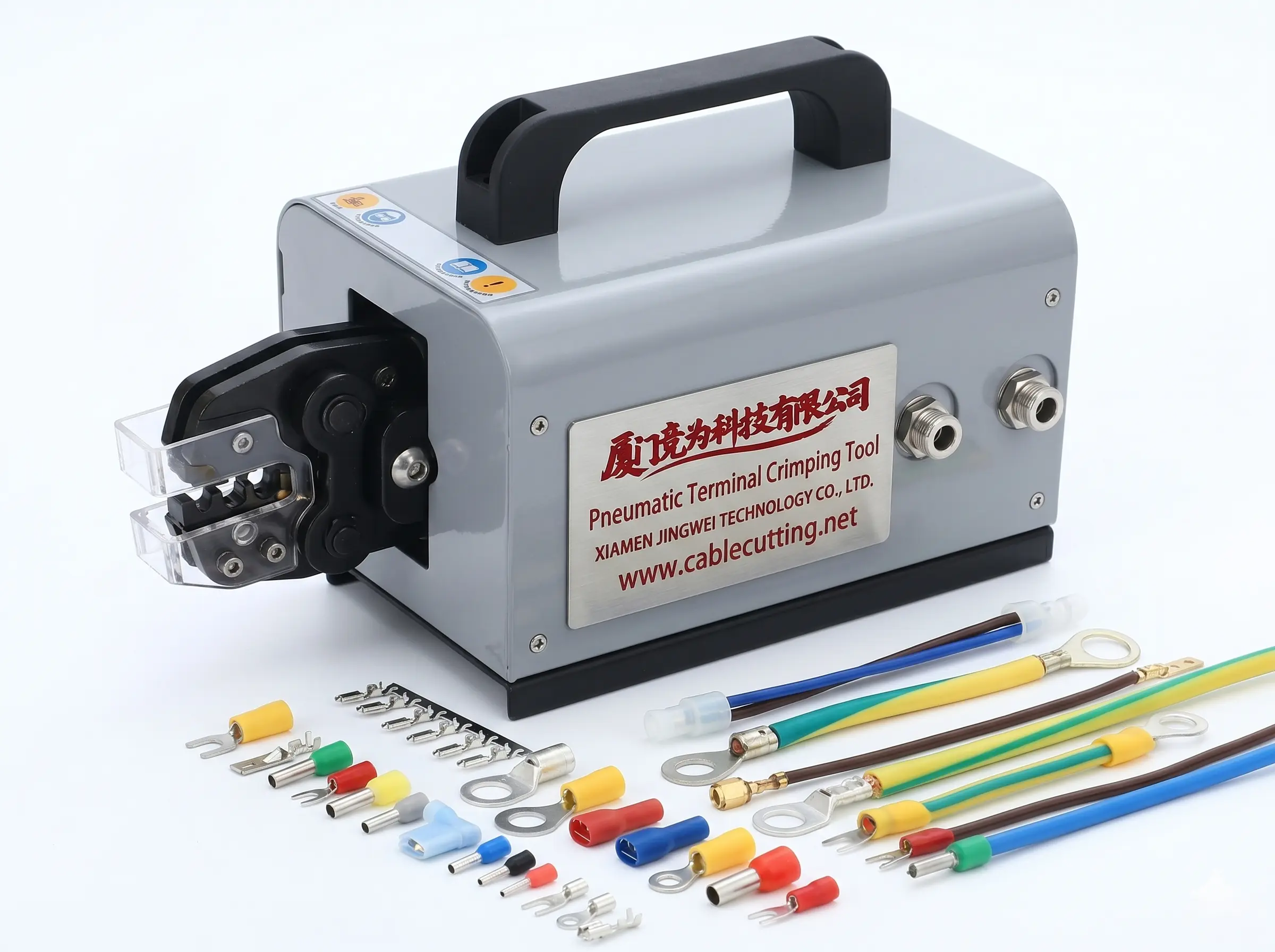

Pneumatic Terminal Crimping Tool with Interchangeable Dies JW-25M

• Model No: JW-25M

• Specifications

  Air pressure range: 0.5-0.8MPa

  Output: 2.5T

  Overall dimension: 270×140×170mm

  Weight: 9.5Kg

  Ferrules crimping range: 0.25-35mm²

  Twin ferrules crimping range: 2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm²

  Insulated O/Y type terminals crimping range: 0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²

  Non-insulated O/Y type terminals crimping range: 0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0, 16.0mm²

  Males/females receptacles crimping range: 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm²

  Contact pins for rectangular connectors crimping range: 0.5, 1.0, 2.0, 4.0mm²
