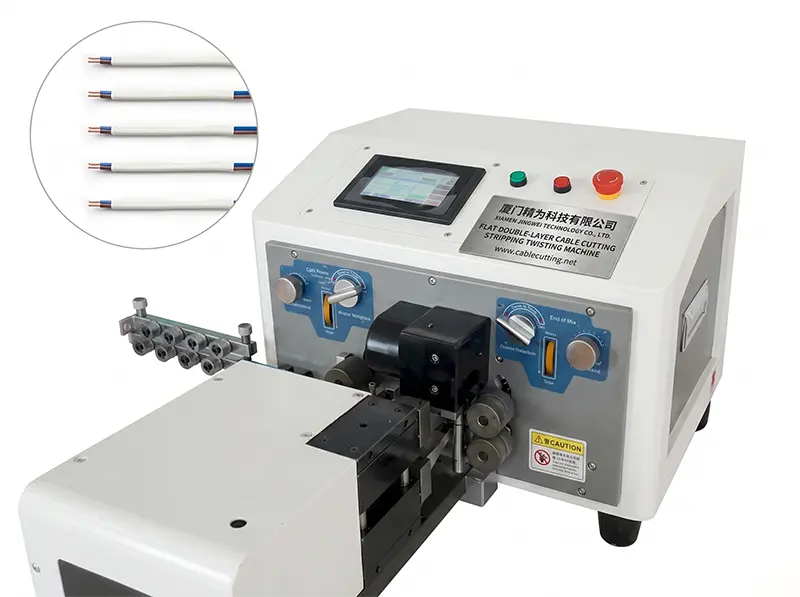

Automatic Flat Cable Cutting Stripping Twisting Machine WPM-320

• Model No: WPM-320

• Specifications

  Model Number: WPM-320

  Function: Wire cutting, double-end stripping and twisting, middle stripping

  Wire Range: 2*(0.3-2.0mm²)+twisting

  Cutting Length: 0.1mm-99999.9mm

  Stripping Length (Sheathed): Head: 0.1-250mm, Tail: 0.1-70mm

  Stripping Length (Inner Core): Head: 0.1-30mm, Tail: 0.1-30mm

  Stripping Accuracy: 0.01mm (silent hybrid stepper motor)

  Intermediate Strip: Customizable

  Capacity: 500-1500/hour

  Blade Material: Imported tungsten steel / high-speed steel

  Power: AC110V/220V 50/60HZ

  Body Size: 565mm * 385mm * 370mm

  Bodyweight: 43kg

  Features: Automatic entry/exit, timing start, jog adjustment
