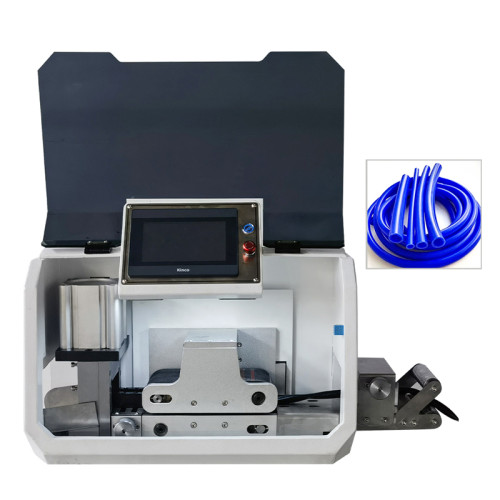

C-3090 Efficient Copper Belt Fixed Length Cutting Machine
- Inquiry Email: Kevinxu@xmjw.ltd
- Product Code: pipe1215227592
- Availability: In Stock
Product Description
Feature:
1. High-speed feeding, computer pipe cutting machine is controlled by microcomputer program with precision of 0.1mm.
2. Adjustable cutter speed.
3. Length and speed are continuously adjustable.
4. Automatic group accumulation and total accumulation count.
5. Batch pause and delay time can be set.
6. Automatically shuts down when no feeding.
7. Automatically cut all kinds of tubular and ribbon materials.The machine is equipped with feeding belt wheel, which can feed
automatically.
8. High-speed stepping motor accurately controls the length of the tube cutting; the length and speed of the tape are adjustable.
9. Cutter time protection; total number setting; split setting; split suspension time adjustable.
10. A variety of manual operations are available to facilitate debugging.
11. Using a special mechanical structure and special cutters, with special software control, to solve the problem of uneven
incisions of silicone tubes of other manufacturers. Achieve a flat incision and accurate length.
2. Adjustable cutter speed.
3. Length and speed are continuously adjustable.
4. Automatic group accumulation and total accumulation count.
5. Batch pause and delay time can be set.
6. Automatically shuts down when no feeding.
7. Automatically cut all kinds of tubular and ribbon materials.The machine is equipped with feeding belt wheel, which can feed
automatically.
8. High-speed stepping motor accurately controls the length of the tube cutting; the length and speed of the tape are adjustable.
9. Cutter time protection; total number setting; split setting; split suspension time adjustable.
10. A variety of manual operations are available to facilitate debugging.
11. Using a special mechanical structure and special cutters, with special software control, to solve the problem of uneven
incisions of silicone tubes of other manufacturers. Achieve a flat incision and accurate length.

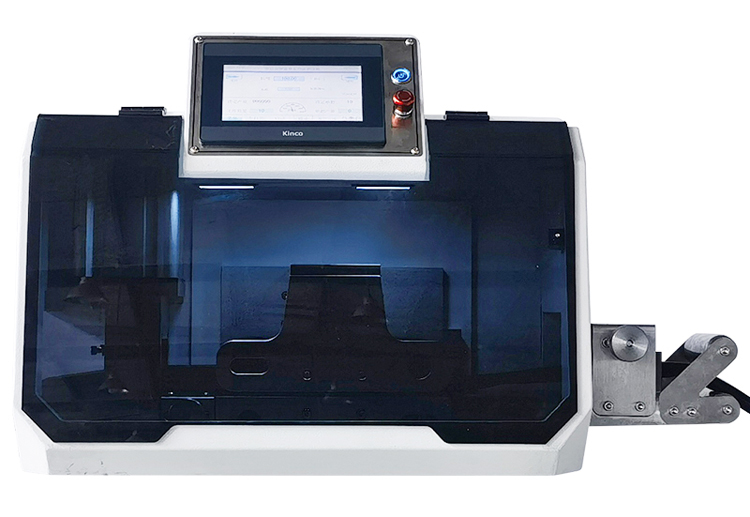

Product name
|
Automatic Flexible Cutting Machine
|
Model
|
C-3090
|
Display
|
LCD Touch Screen
|
Function
|
Fixed Length Cutting of Heat shrink tube, hose, film, paper, ribbon, etc
|
Processing Range
|
1-30mm
|
Cutting Type
|
Cylinder
|
Cutting width
|
90mm
|
Cutter Stroke
|
60mm
|
Productivity
|
1000pcs/h (Depending On The Length and Size)
|
Power Supply
|
AC220V 50/60Hz ;110V 50/60Hz
|
Power
|
300W
|
Dimension
|
570x490x460
|
N.W
|
90kg
|
Details Images

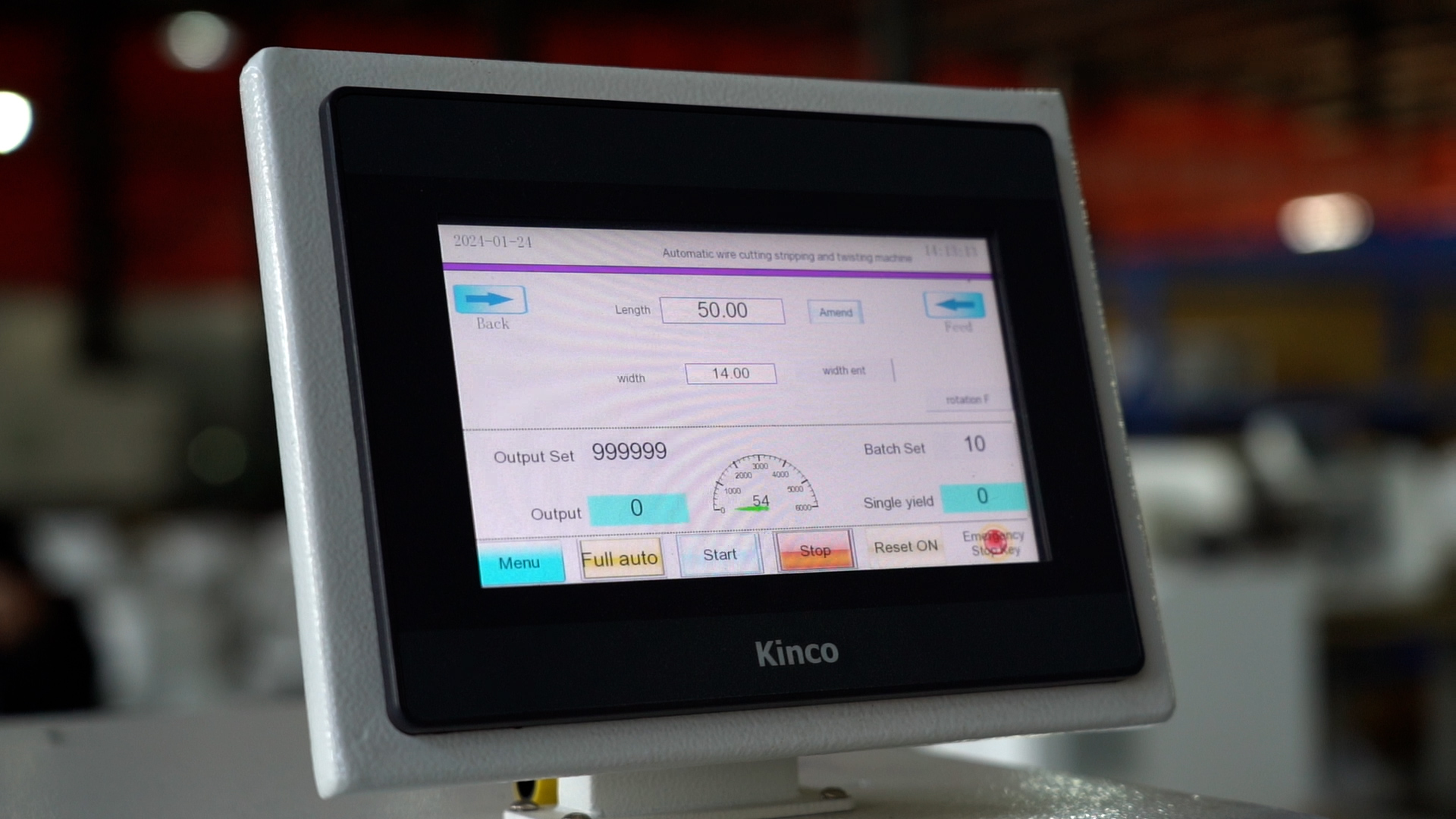

LCD Touch Screen
7-inch LCD touch screen,Different modes and fast production setup for different applications. 99 group data can be stored. Support for multiple languages.

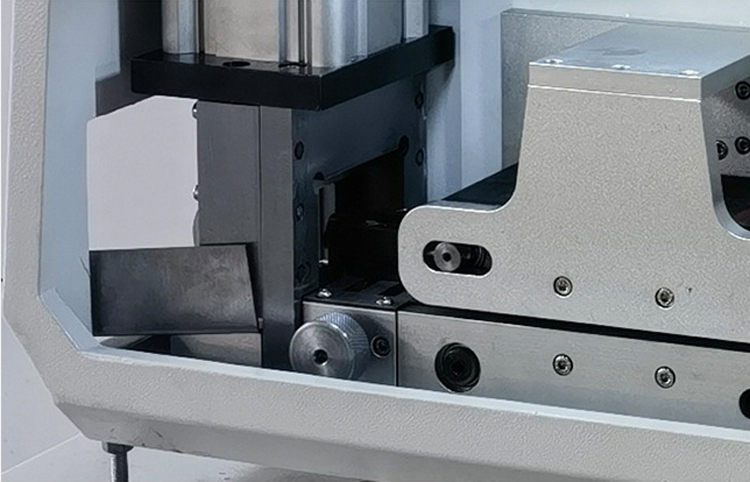

Blades Holder Structure
Blades Holder Structure, cylinder cutting, high precision, strong stability, smooth incision, high efficiency

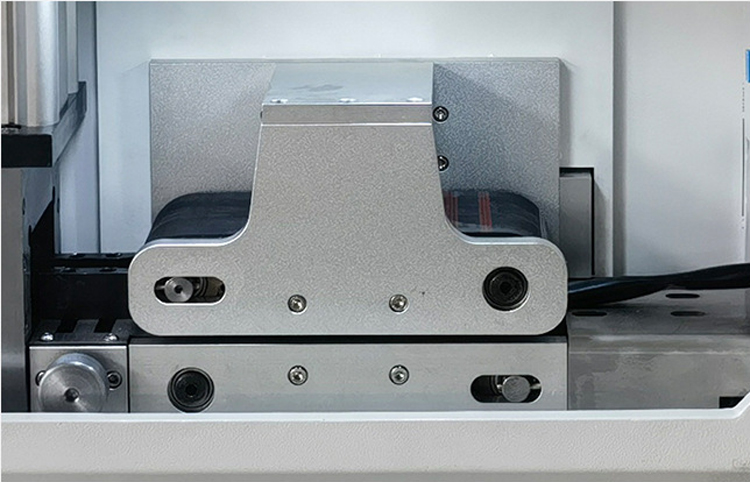

Flexible Feeding Structure
Flexible feeding structure, which allows different shapes of materials.

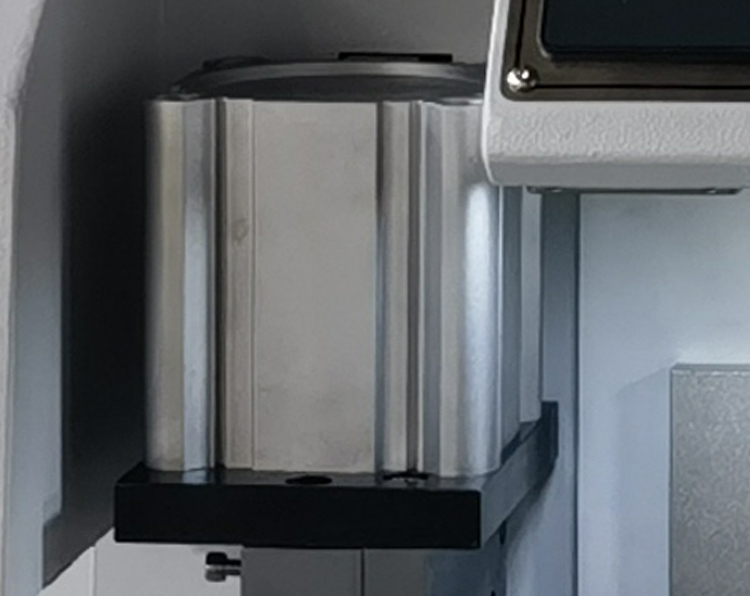

Air Cylinder
Equipped with air cylinder, and the cutting force is significantly enhanced.
Application
C-3090 Automatic Flexible Cutting Machine has a wide range of applications, and can cut a variety of thin and thick materials such as copper wire, aluminum sheet, aluminum wire, steel wire, stainless steel wire, cable, heat shrink pipe, battery sleeve, nylon pipe, double-wall pipe, PVC hose, latex pipe, rubber pipe, etc
Air Source | 0.5-0.7Mpa |
Applicable Industries | Garment Shops;Building Material Shops;Machinery Repair Shops;Manufacturing Plant;Food & Beverage Factory;Retail;Construction works;Energy & Mining;Food & Beverage Shops |
Automation | Automatic |
Brand Name | Stimy |
Condition | New |
Core Components | PLC;Motor |
Cutter Stroke | 60mm |
Cutting Diameter | 1-30mm |
Cutting material | PVC;Heat shrink;Plastic;Rubber etc |
Cutting Thickness (mm) | 60 |
Cutting Type | Cylinder |
Cutting Width | 90mm |
Dimension | 570x490x460mm |
Dimension(L*W*H) | 570x490x460mm |
Key Selling Points | Automatic |
Machinery Test Report | Not Available |
Marketing Type | Hot Product 2024 |
Material / Metal Processed | PVC;Plastic;Brass / Copper;stainless steel;Aluminium alloy;ALLOY;Aluminum;corrugated pipe |
Place of Origin | Henan;China |
Power | 300W |
Power Supply | AC220v/110V 50/60Hz |
Product name | Automatic Flexible Cutting Machine |
Rated Power | 300W |
Showroom Location | None |
Video outgoing-inspection | Provided |
Voltage | 110V/220V |
Warranty | 1 Year |
Warranty of core components | 1 Year |
Weight (KG) | 70 |
Year | 2024 |
