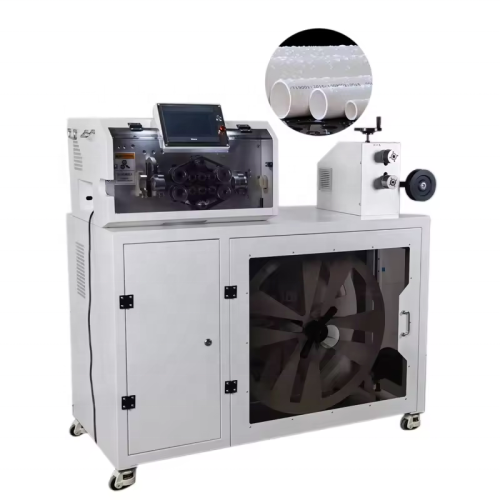

Automatic Corrugated Pipe Cut & Splitting Machine
- Inquiry Email: Kevinxu@xmjw.ltd
- Product Code: pipe1215495143
- Availability: In Stock
Automatic corrugated pipe Tube Cut Splitting Machine bellows cutting machine sleeve cutting machine Material distribution system
| Display | 7 Inch Man-Machine Interface |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |
| Function |

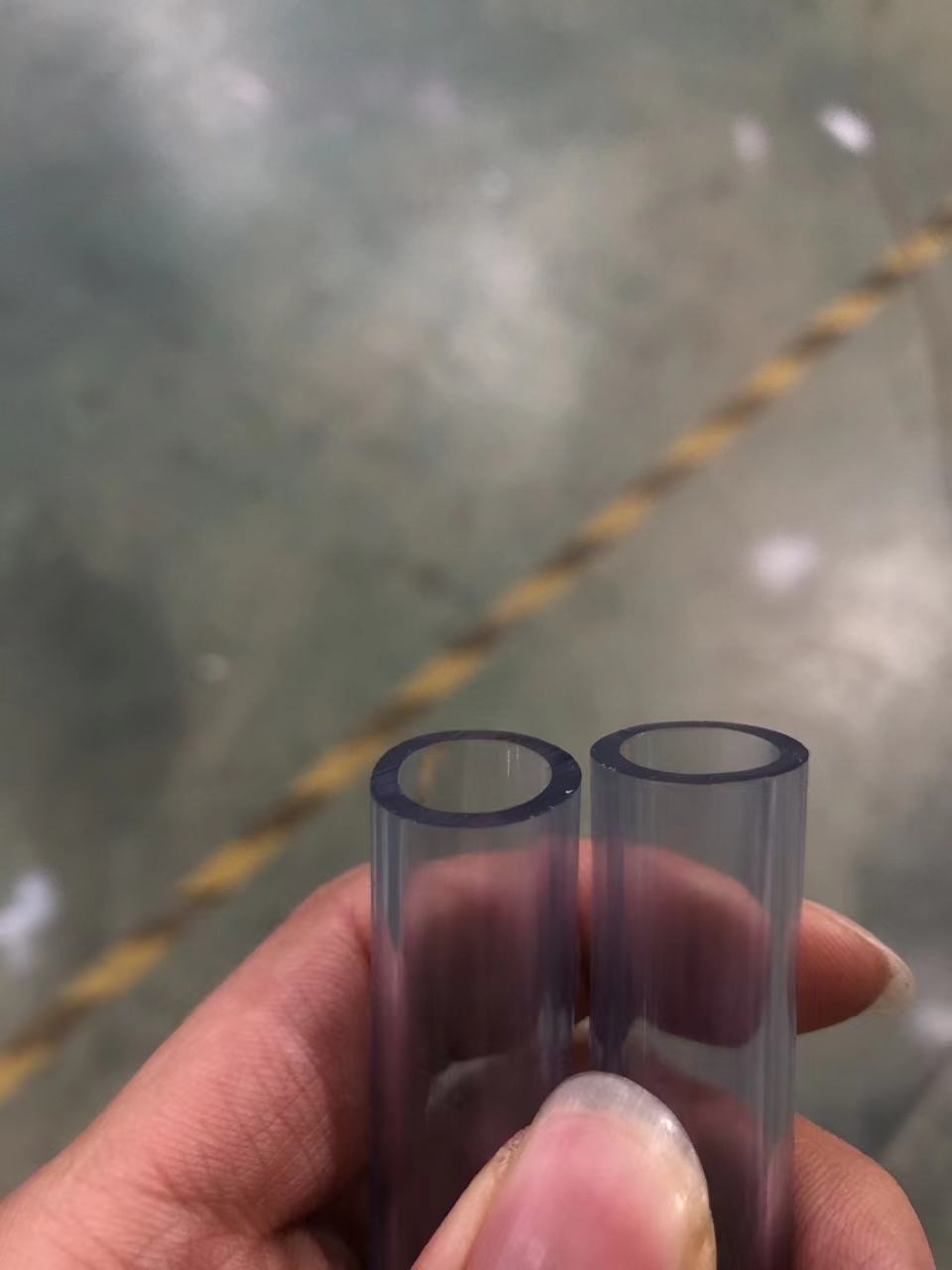

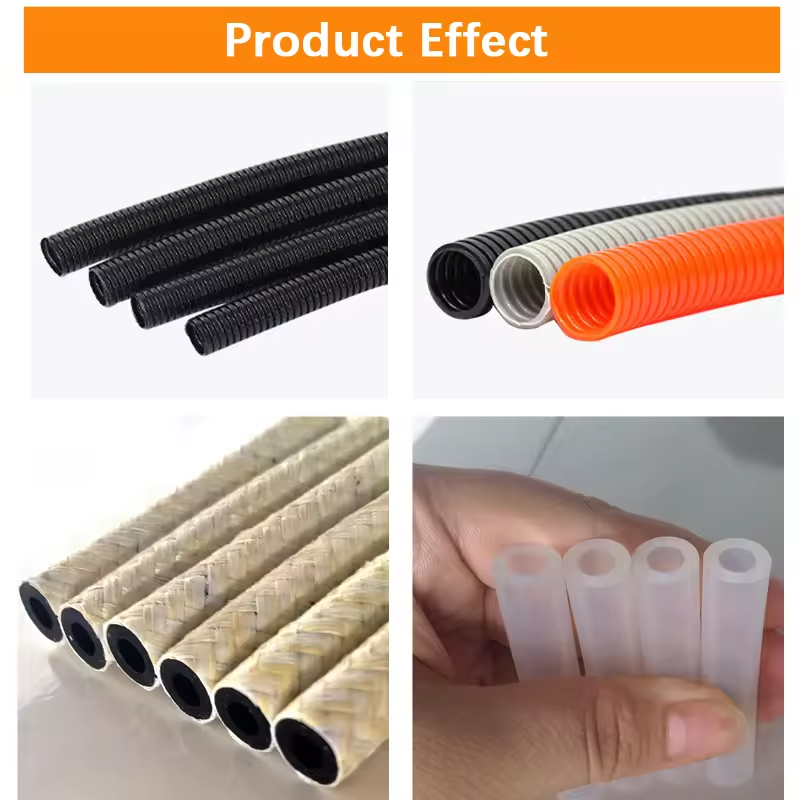

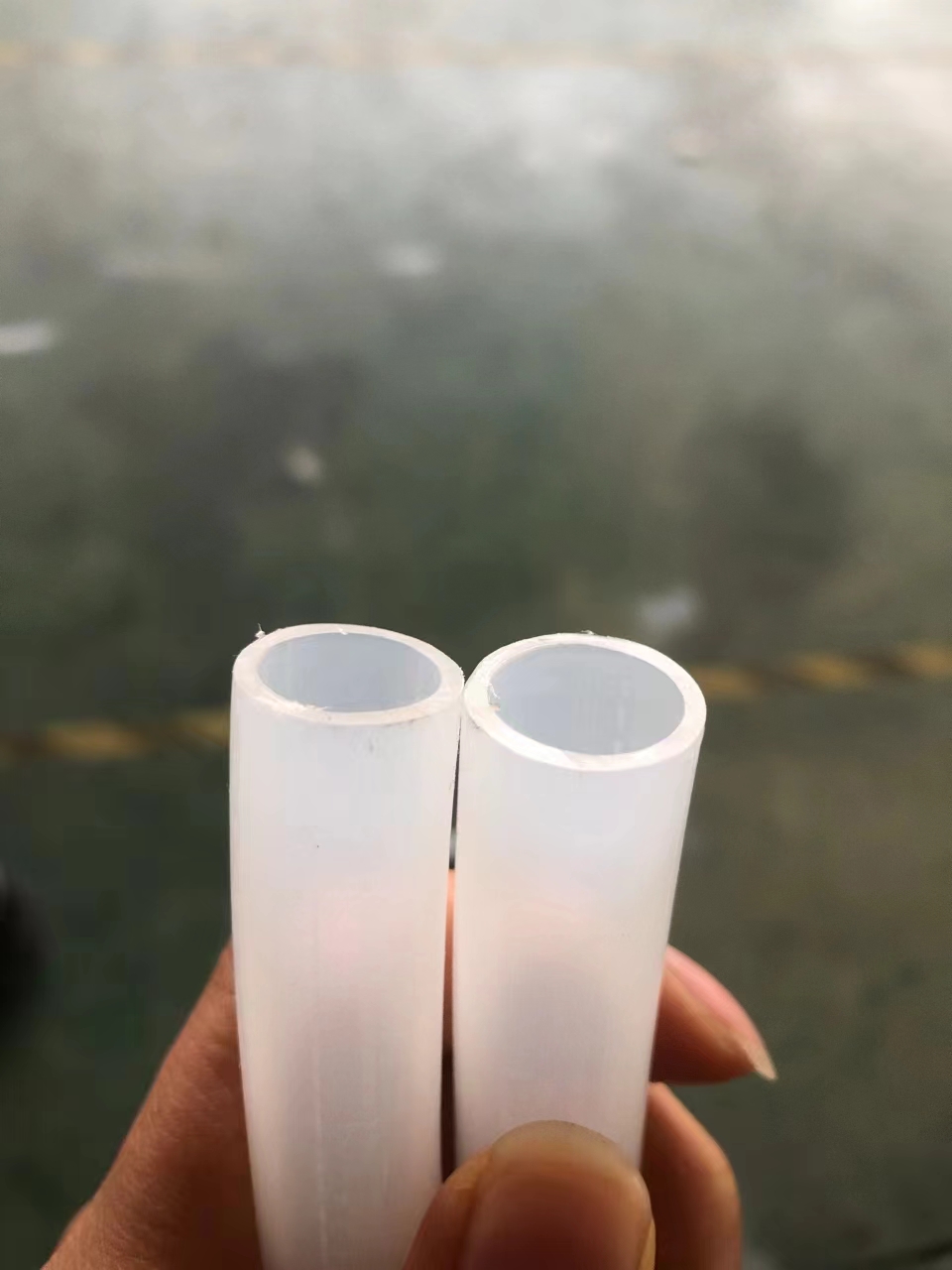

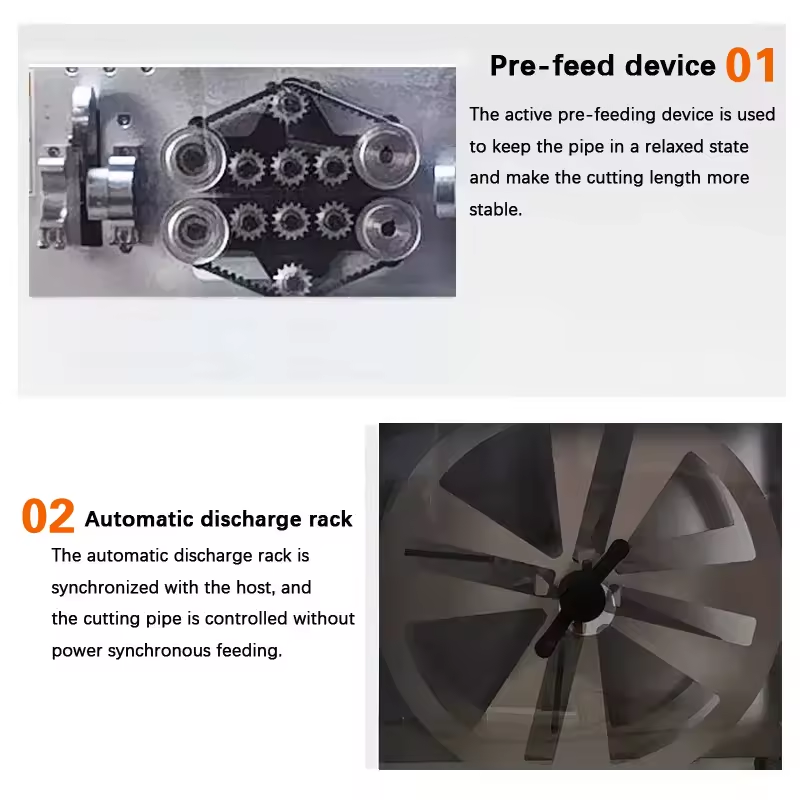

1, corrugated pipe /PVC pipe/heat shrink pipe, such as thin-wall pipe fixed length cut, high-speed flying cut; 2, section function: continuous section Supporting: integrated discharge function, pre-delivery function |
| Processing Range | 4-35mm |
| Cutting Length | 1mm--999999.99mm |
| Cutting Tolerance | Within 0.005*L (L=Cutting Length) |
| Discharge range |
120-800mm |
| Production Rate | 100000pcs/hour(100mm/Diameter 10mm) |
| Drive Mode | 10-wheel drive; Servo Motor Optional |
| Feeding System | Belt Feeding, No embossing or scratches on the pipe |
| Lifting Operation Mode | Digital Adjustment of pressure wheel/roller height |
| Split Power Mode | Servo Motor |
| Cutting speed adjustment | Touch screen stepless speed regulation |
| Open adjustment mode | Touch screen digital adjustment |
| Cutter material | tungsten steel |
| Power Supply | AC220V 50/60Hz;Optional: 110v 50/60Hz |
| Air Source | NO Air Source |
| Dimension | 1550*650*1400mm |
| N.W | 260KG |
Feature:
1, Optional: MES System,Internet Of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm;
2, User-friendly system, intuitive operation via 7-inch color touch screen;
3, Modular interface, convenient for linking accessories and peripheral equipment;
4, Modular Design, future upgradeable;
5, A variety of additional options can customize the system. Special pipe processing can be customized.
| Air Pressure | Air free |
| Applicable Industries | Building Material Shops;Machinery Repair Shops;Manufacturing Plant;Retail;Construction works;Energy & Mining;Other |
| Automation | Automatic |
| Brand Name | STM |
| Condition | New |
| Core Components | Engine;Bearing;Motor;Gear |
| Cutting length | 1-999999.99mm |
| Cutting Thickness (mm) | 35 |
| Dimension(L*W*H) | 1550*650*1400 |
| Discharge range | 120-800mm |
| Key Selling Points | Automatic |
| Machinery Test Report | Not Available |
| Marketing Type | New Product 2020 |
| Material / Metal Processed | PVC;Plastic |
| Model | CP-35FVLA |
| Place of Origin | Henan;China;Henan.China |
| Processing Range | 4-35mm |
| Product name | Automatic PVC pipe cutting machine |
| Rated Power | 350W |
| Showroom Location | None |
| Size | 1550*650*1400mm |
| Video outgoing-inspection | Provided |
| Voltage | 110V/220V;110V/220V |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight | 260kg |
| Weight (KG) | 260 |
| Year | 2022 |
