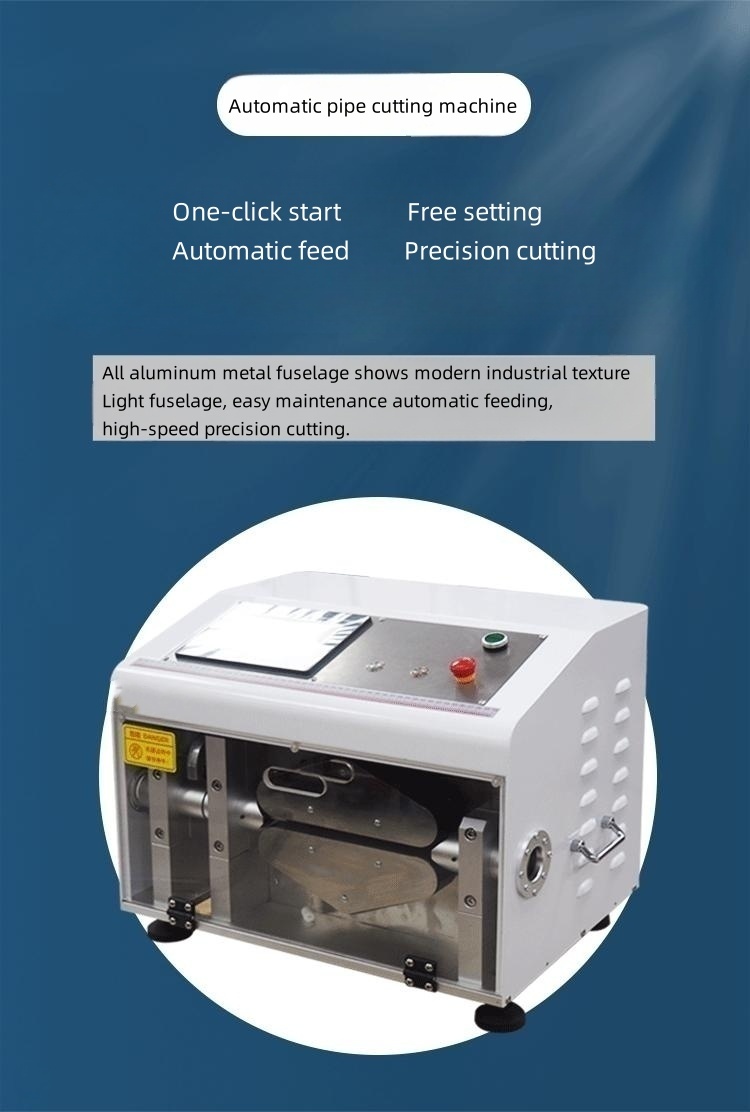

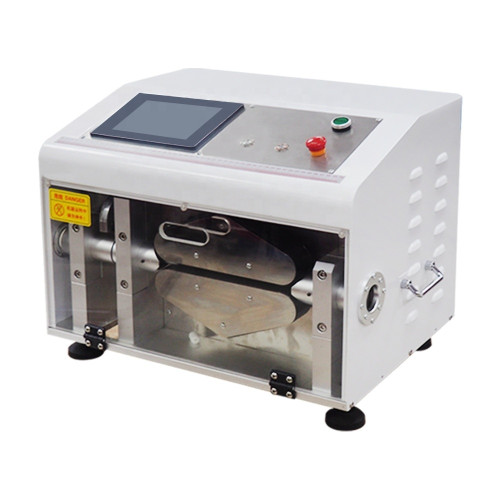

Automatic Corrugated/Rubber Hose Tube Cutting Machine
- Inquiry Email: Kevinxu@xmjw.ltd
- Product Code: pipe1215440197
- Availability: In Stock
Automatic Corrugated Pipe/rubber hose Cut Machine automatic tube cutting machine
Specification
| Corrugated Pipe Cutting Machine | |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |
| Function | Fixed Length Cutting and Splitting Of Thin-walled Pipes such as Corrugated Pipes/PVC Pipes/Heat-Shrinkable Pipes |
| Processing Range | 1-40mm |
| Cutting Length | 1mm--99999mm |
| Cutting Tolerance | Within 0.005*L (L=Cutting Length) |
| Production Rate | 7500pcs/hour(100mm/Diameter 10mm) |
| Feeding System | Belt Feeding, No embossing or scratches on the pipe |
| Lifting Operation Mode | Digital Adjustment of pressure wheel/roller height |
| Split Power Mode | Servo Motor |
| Split Speed Adjustment | Touch Screen Stepless Speed Regulation |
| Split Position | Any Position,Any Length, Continuous Section |
| Power Supply | AC220V 50/60Hz;Optional: 110v 50/60Hz |
| Air Source | NO Air Source |
| Dimension | 58*43*47cm |
| N.W | 62KG |
Feature:
1, Optional: MES System,Internet Of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm;

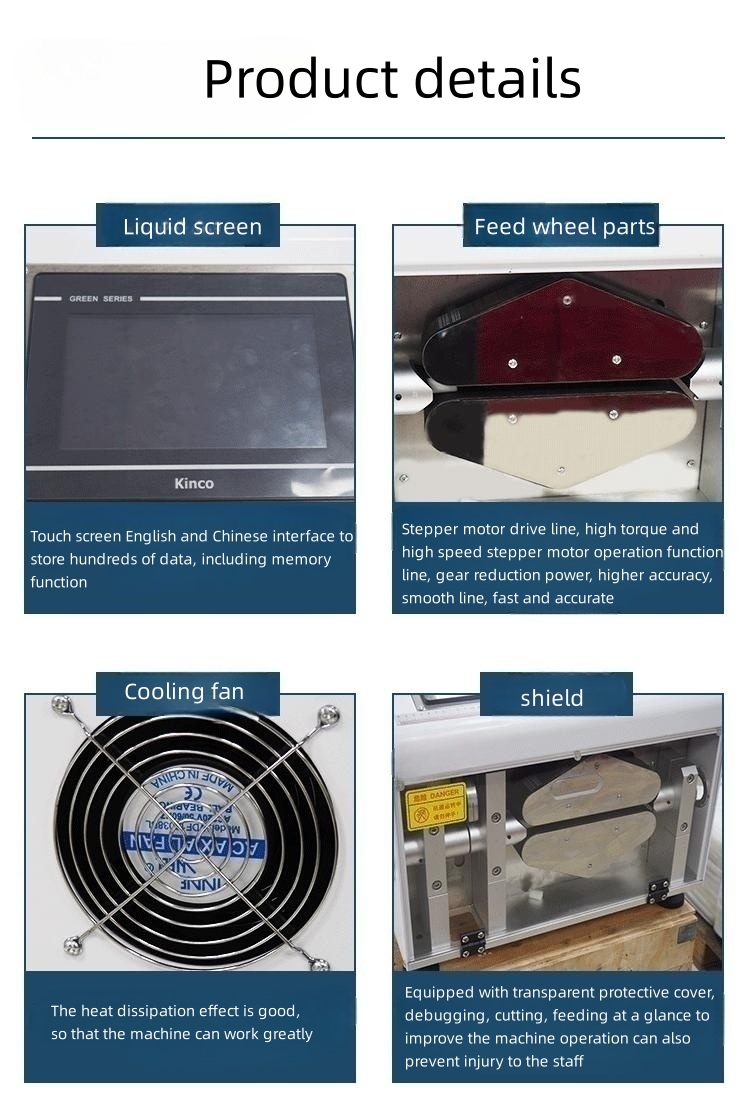

2, User-friendly system, intuitive operation via 7-inch color touch screen;
3, Modular interface, convenient for linking accessories and peripheral equipment;
4, Modular Design, future upgradeable;
5, A variety of additional options can customize the system. Special pipe processing can be customized.
| Applicable Industries | Machinery Repair Shops;Food & Beverage Factory;Home Use;Construction works;Energy & Mining;Other |
| Automation | Automatic |
| Blade Size(mm) | 1 |
| Brand Name | STM |
| Condition | New |
| Core Components | PLC;Bearing;Motor |
| Cutting Lenght | 1-100000mm |
| cutting range | 1-40mm |
| Cutting Speed | 7500pcs/H |
| Cutting Thickness (mm) | 40 |
| Dimension(L*W*H) | 580*430*470mm |
| Key Selling Points | Automatic |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Material / Metal Processed | PVC;Plastic |
| Place of Origin | Henan;China |
| Power Supply | 110V/220V50-60hz |
| Product name | PVC Tube Cutting Machine |

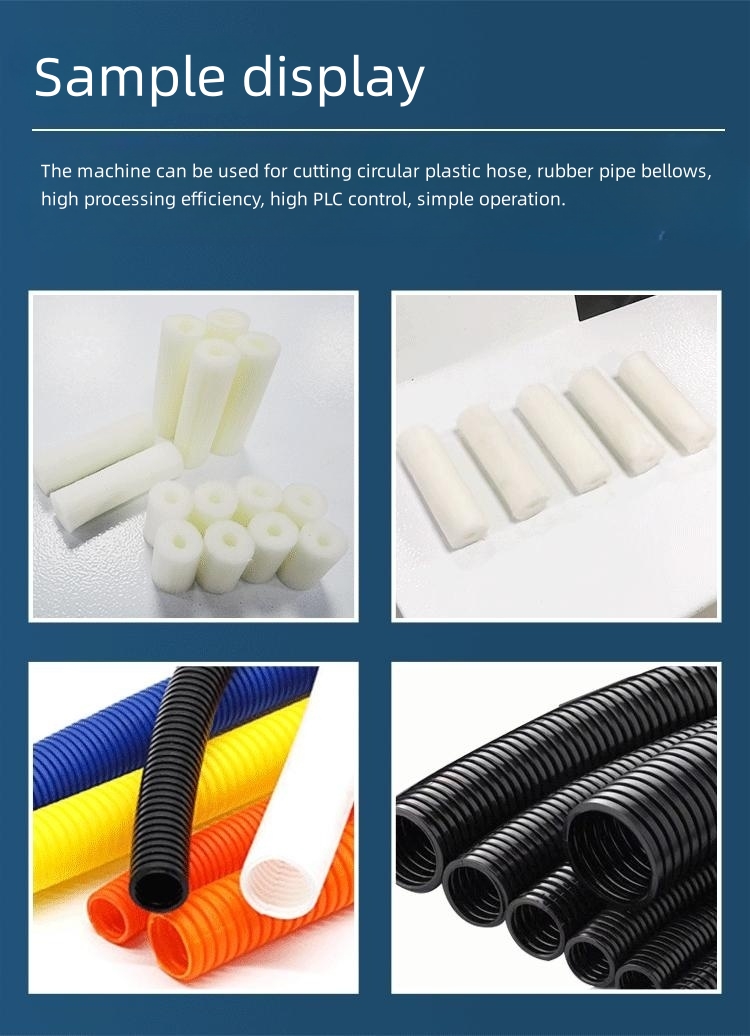

| range of application | Bellows;tubing;silicone pipe;gas pipe;PVC pipe;cotton swab |
| Rated Power | 800W |
| Showroom Location | None |
| Size | 580*430*470mm |
| Video outgoing-inspection | Provided |
| Voltage | 220V |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight | 62kg |
| Weight (KG) | 62 |
| Year | 2022 |
