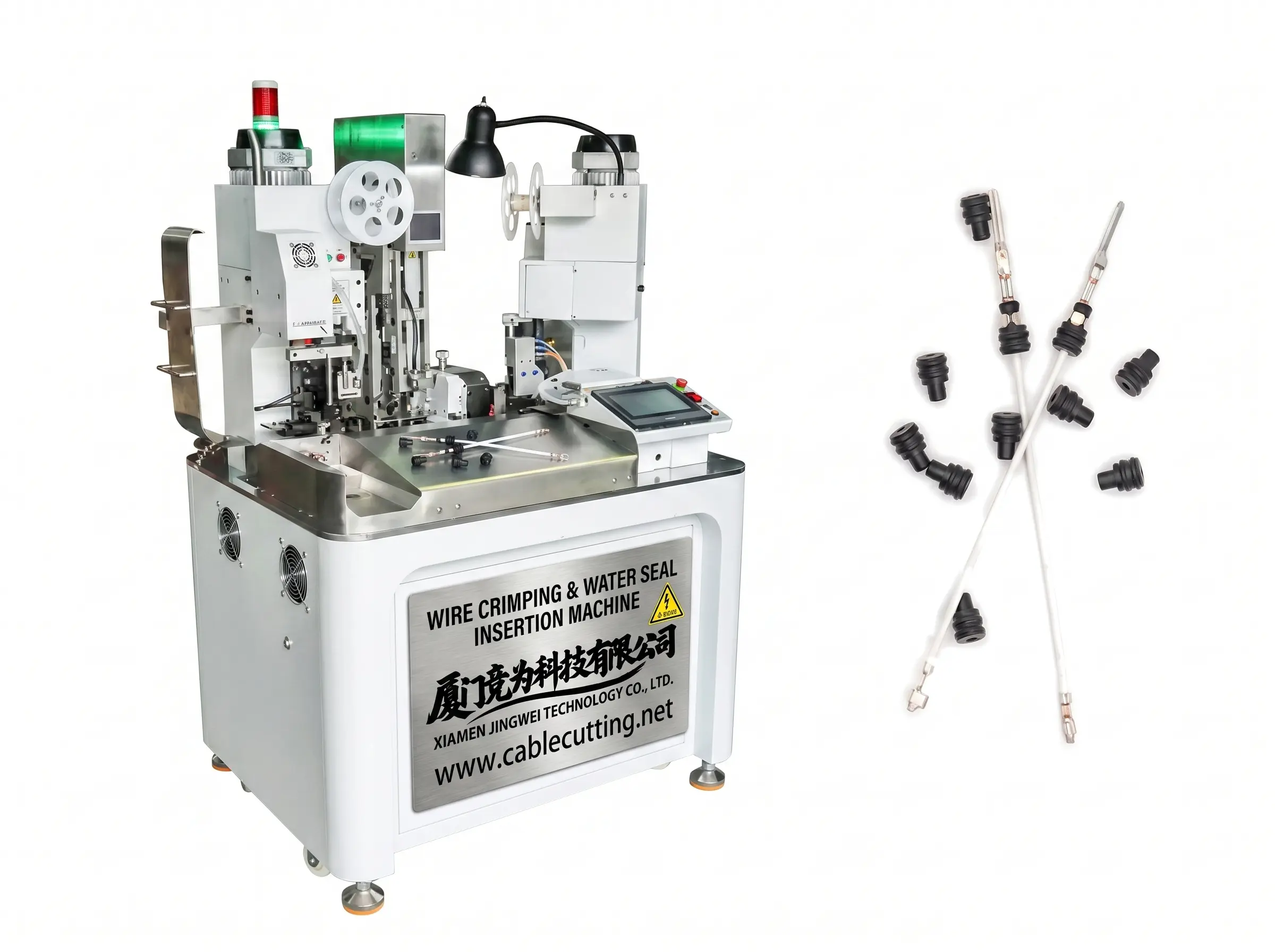

Automatic Wire Crimping & Water Seal Insertion Machine WPM-078H

Name: Automatic Wire Crimping & Water Seal Insertion Machine WP...
Brand: JINGWEI
SKU: WPM-078H
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-078H
Specifications
Model Number: WPM-078H
Power: AC220v/50/60hz
Capacity: 2000pcs~3000pcs/h (L=150MM)
Wire Range: 0.3~2.5sqmm, AWG28#-AWG14#
Cutting Length: 45-3000mm (customizable)
Cutting Accuracy: 0.5mm + cutting length x 0.2%
Stripping Length: 0.5-8mm (customizable)
Suitable Applicator: OTP applicator, European applicator, Korea applicator
Crimping Stroke: 30mm (40mm optional)
Air Pressure: 5-6kgf
Inquiry now

wire crimping and water seal insertion machine, Water Seal Insertion Machine, Insertion Machine
This crimping machine is an automatic wire on both sides crimping and water seal insertion machine.
it can automatically feed the water seal by vibration plate, insert the water seal before crimping terminals.
Power: AC220v/50/60hz
Functions: Wire cut, both ends striping, one side/both sides crimping and inserting cable water seal.
Capacity: 2000pcs~3000pcs/h(L=150MM)
Wire range:0.3~2.5sqmm, AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator, and Korea applicator
Crimping stroke:30mm(40mm for optional)
Air pressure: 5-6kgf

Processing result display
wire crimping and water seal insertion machine, Water Seal Insertion Machine, Insertion Machine
