Automatic PTFE Tape Wrapping Machine for Threaded Joints WPM-1308

Name: Automatic PTFE Tape Wrapping Machine for Threaded Joints ...
Brand: JINGWEI
SKU: WPM-1308
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-1308
Specifications
Model: WPM-1308
Tape Width: 5mm, 7mm, 10mm, 14mm
Weight: 70KG
Size: 450*400*560mm
Working Speed: 3-5 pieces/second (wrap 2-3 circles)
Type: Electric and automatic
Power: 750W
Voltage: 220V
Pressure: 0.6Mpa
Applicable: Teflon tape wrapping for threaded joints, especially for raw tape 1/8 - 1 1/2 inch threaded joint
Requirement for Teflon Tape: made of polytetrafluoroethylene dispersion resin
Inquiry now

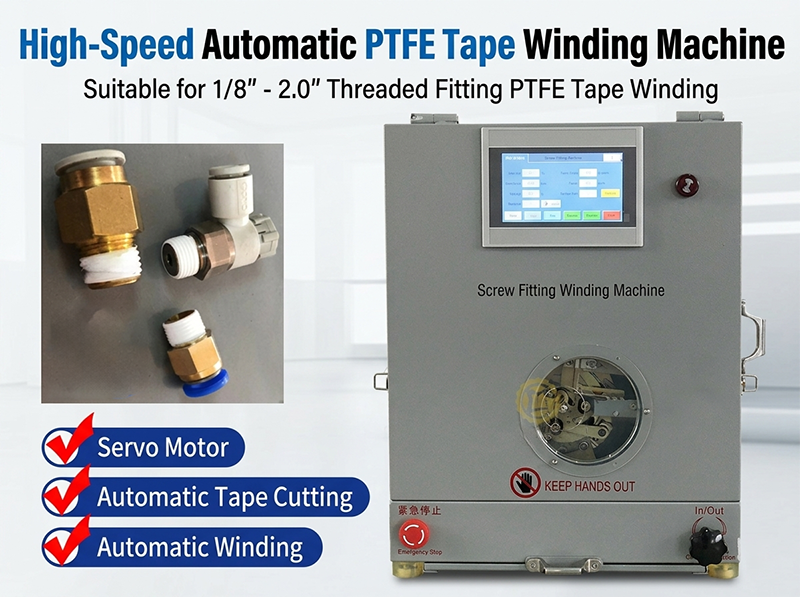

Automatic Thread Seal Tape PTFE Tape Wrapping Machine
This automatic Thread Seal /PTFE tape wrapping machine is suitable for wrapping PTFE tape for all screwed joints, including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints, and so on. It highly improves production efficiency.

1 Easy to operate, no need for skilled workers, the number of turns and winding speed can be set
2 High efficiency and high quality, no rework and loss
3 Finishing a complete process in an average of 3 seconds
4 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces
5 Winding closely and tightly, not easy to fall off
6 The data of the servo drive is accurate, reliable, and stable

Model	WPM-1308	WPM-1309
Tape width	5mm, 7mm, 10mm, 14mm (min.3mm, max.16mm customizable)
Fitting diameter	1/8-2 inches (2.5 inches can be customized)
Working speed	6-7 seconds/pcs (wrap 2-3 circles)	3-5 seconds/pcs (wrap 2-3 circles)
Type	electric and automatic with air source
Voltage	220/110VAC; 50/60Hz
PLC	H1U-0806MT-XP
Motor	servo driver and servo motor	IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor
Touch screen	EV-043A11-AA	TK6071P
Weight	78KG
Size	725252cm
