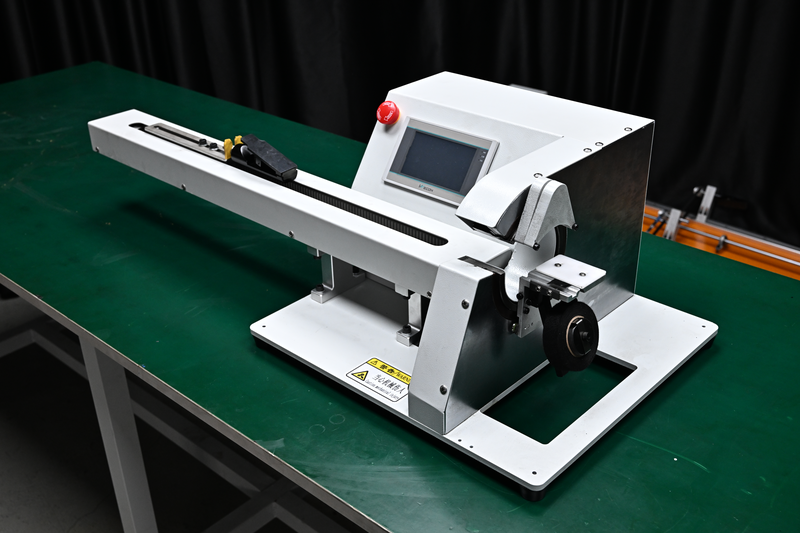

Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m

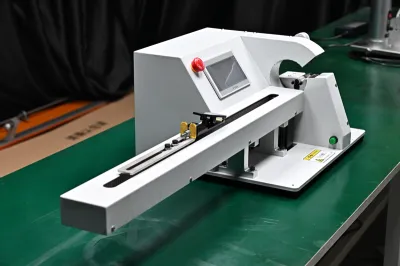

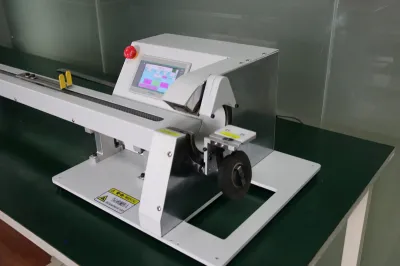

Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m Thumb Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m Thumb Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m Thumb Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m Thumb Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m Thumb
Video Thumbnail

Single-Side Wire Pulling Tape Wrapping Machine JW-303K-1.0m

  • Model No: JW-303K-1.0m

  • Specifications

    Model Number: JW-303K-1.0m
    Applicable Wire Diameter: Ф3mm - 25mm
    Adhesive Tape Compatibility: Maximum outer diameter: 110mm, Width: 9mm - 30mm, Inner hole: Ф38 (default); Ф32/Ф76 available on custom request
    Wrapping Performance: Wrapping length: 1050mm (customizable), Stopping position accuracy: ±1mm, Wrapping density: Adjustable via machine parameter settings
    Main Machine Speed: 200 - 1400 rpm (stepless adjustable)
    Power Supply: AC220V/DC24V 50/60HZ; 110V optional
    Dimensions & Weight: Machine size: 1470mm × 380mm × 280mm (net weight: 36KG), Export wooden case size: 1640mm × 470mm × 440mm (gross weight: 60KG)
    Suitable Tape Types: PVC tape, plush tape, cloth-based tape, high-temperature tape, mica tape, ceramic tape, etc.
  • Inquiry now

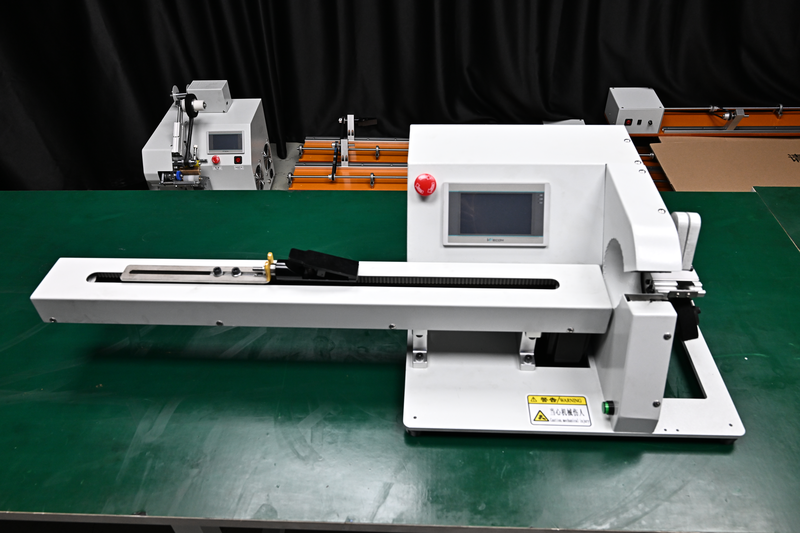

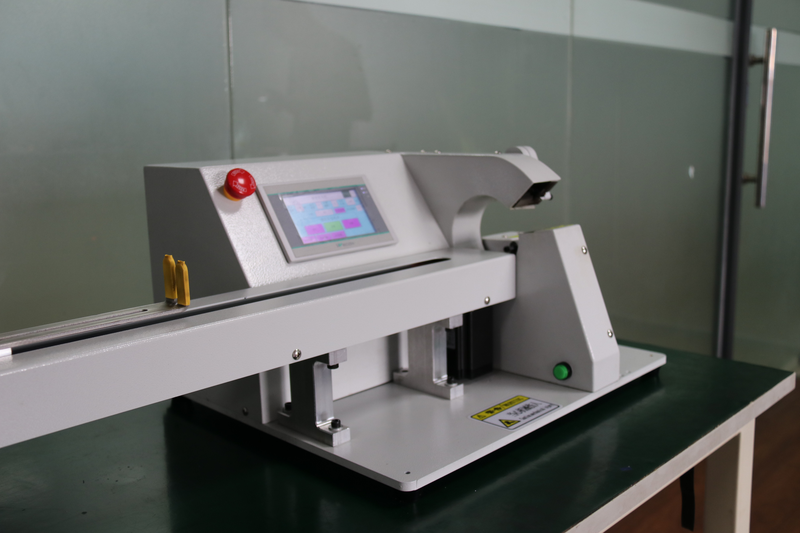

Adhesive Tape Wrapping Machine with Single-Side Wire Pulling

Model: JW-303K-1.0m

1. Overview

The JW-303K-1.0m is a professional adhesive tape wrapping equipment integrated with single-side wire pulling function. It adopts a user-friendly touchscreen operation system and spiral wrapping method, designed to meet high-precision wrapping requirements for various wire harnesses. With flexible parameter adjustment and wide compatibility with tape types, it is an ideal solution for wire harness processing in industrial scenarios.

2. Core Specifications


Specification Category

Details

Applicable Wire Diameter

Ф3mm - 25mm

Adhesive Tape Compatibility

- Maximum outer diameter: 110mm
- Width: 9mm - 30mm
- Inner hole: Ф38 (default); Ф32/Ф76 available on custom request

Wrapping Performance

- Wrapping length: 1050mm (customizable for longer/shorter lengths)
- Stopping position accuracy: ±1mm
- Wrapping density: Adjustable via machine parameter settings

Main Machine Speed

200 - 1400 rpm (stepless adjustable)

Power Supply

AC220V/DC24V 50/60HZ; 110V optional

Dimensions & Weight

- Machine size: 1470mm × 380mm × 280mm (net weight: 36KG)
- Export wooden case size: 1640mm × 470mm × 440mm (gross weight: 60KG)

Suitable Tape Types

PVC tape, plush tape, cloth-based tape, high-temperature tape, mica tape, ceramic tape, etc.


3. Key Functions

  • Multiple Wrapping Modes: Supports full wrapping, interval wrapping, and spot wrapping. The overlap area of the tape can be freely adjusted according to processing needs.
  • Precision Control: Enables accurate setting of tape wrapping length, with a stopping position accuracy of ±1mm, ensuring consistent quality for multi-segment wrapping requirements.
  • User-Friendly Operation: Equipped with a touchscreen interface for intuitive parameter input (e.g., wrapping density, length, speed) and real-time operation monitoring, reducing operational complexity.

4. Application Scenarios

This machine is specifically designed for processing wire harnesses that require precise tape wrapping, including:
  • Collection wire harnesses
  • Multi-branch wire harnesses
  • Wire harnesses with specified tape wrapping lengths
  • Wire harnesses needing accurate stopping positions for multi-segment wrapping
It is widely applicable in industries such as electronics, automotive, and electrical engineering, where high-precision wire harness insulation
