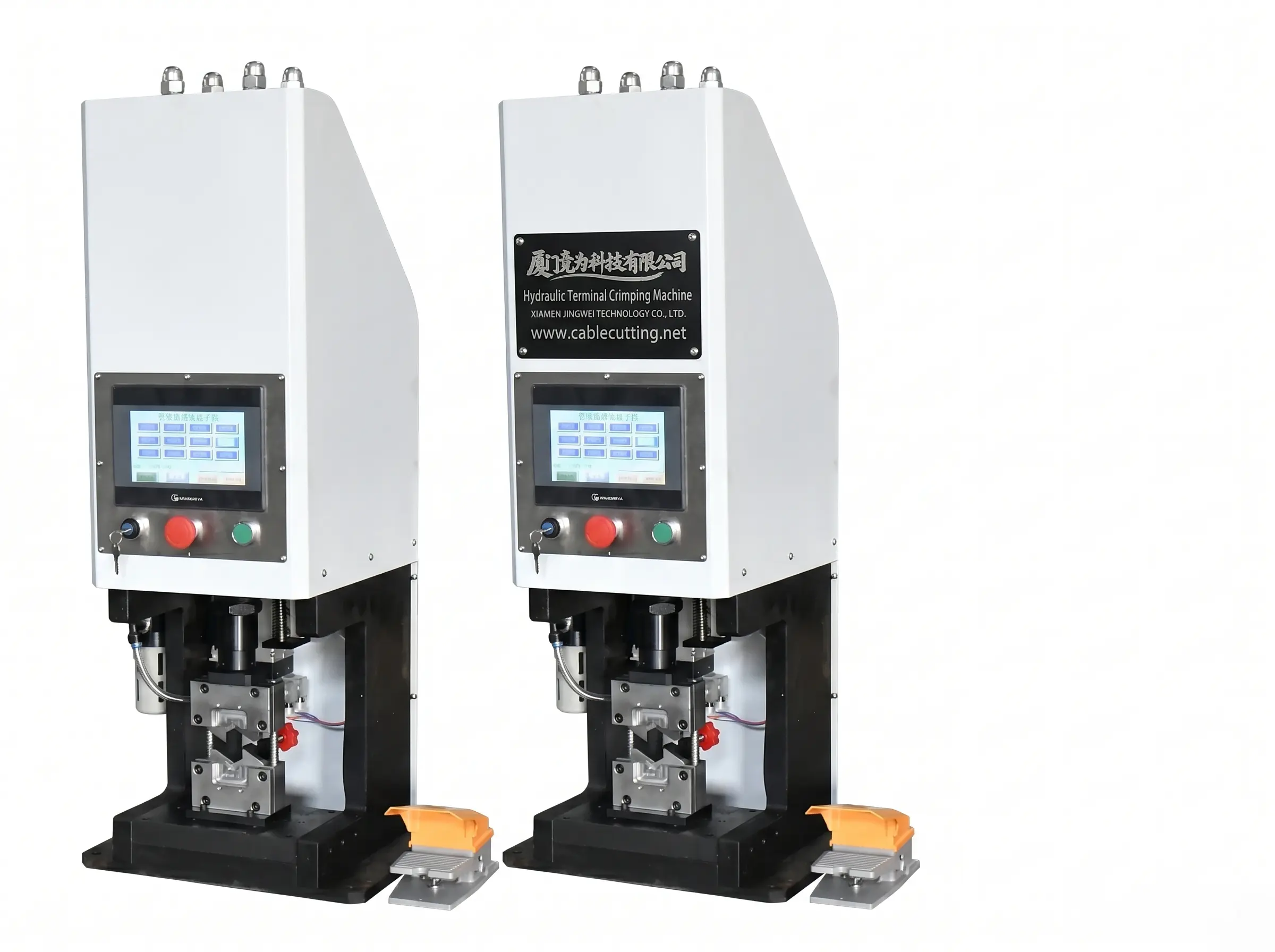

50T Hydraulic Terminal Crimping Machine for Cable Lugs WPM-50T

Name: 50T Hydraulic Terminal Crimping Machine for Cable Lugs WP...
Brand: JINGWEI
SKU: WPM-50T
Availability: InStock
Rating: 5 (1 reviews)

50T Hydraulic Terminal Crimping Machine for Cable Lugs WPM-50T
50t Hydraulic Terminal Crimping Machine, 50t Terminal Crimping Machine, Cable Lugs Crimping Machine This is a semi-automatic crimping machine, suitable for cable lug, and ferrule terminal crimping.
Product details
Applicable wire 10-120mm²
Power supply AC 220V
Crimping force 20T
Air supply 05-0.8MPa
Terminal shape Hexagonal shape, B-shaped, square shape.
Stroke 40mm
Size 450*450*1200mm
Weight 200kg
Applicable mold Hexagon mold/square mold/B-shaped mold

Remarks:
1) Hexagon mold: 10-120mm² no need to change the mold.
2) Square mold: for ferrule/cord end terminal crimping.
3) B-shaped mold: according to the dimensions of the terminal, one mold for one side of the terminal.
Features and advantages:

(1)AirTac pneumatic parts, good sealing, sensitive response, wear-resistant and durable.
(2) Press the button start or press the footswitch start.
(3) Hydraulic and airpower, saving energy.
(4) Simple operation,replaceablee crimping mold.
(5) Stable performance, high efficiency.
(6) For crimping operations for non-standardized or crimp terminals. Easy operation of the machine and easy maintenance, designed for high-volume manufacturers to save the cost of its failure period waste.

Our crimping machines:
(1) Semi-auto super mute crimping machine: 1.5T, 2T, 3T, 4T, 6T, 8T.
(2) Servo motor drive crimping machine: suitable drive crimping machine: suitable for enameled wire splicing.
(3) Servo motor drive hexagon terminal crimping machine 15T.
(4) Hydraulic hexagon/B-shape/point press terminal crimping machine 20T.
(5)Auto-feedingg loose terminal crimping machine, with a vibrator.
(6) Full auto single/double end wire cutting stripping crimping machine.
(7) Fullautoonesidedcrampingone-sidede twisting tinning machine.
(8Fullauto cuttingg stripping crimping housing insertion machine.
(9) For further information, please contact us.
sample of Hydraulic Terminal Crimping Machine, 50t Terminal Crimping Machine, Cable Lugs Crimping Machine

sample of Hydraulic Terminal Crimping Machine, 50t Terminal Crimping Machine, Cable Lugs Crimping Machine

Hydraulic Terminal Crimping Machine, 50t Terminal Crimping Machine, Cable Lugs Crimping Machine

What wire size range can the WPM-50T hydraulic terminal crimping machine handle?

The WPM-50T is designed to crimp cable lugs for wires ranging from 10mm² to 120mm², making it suitable for a wide variety of industrial cable harness applications, from smaller control wires to larger power cables.

What is the crimping force of this 50T hydraulic crimping machine?

This machine delivers a powerful 20-ton (20T) crimping force. The '50T' in the model name refers to the machine's overall capacity and series, while the 20T force is the specific pressure applied to create secure, gas-tight, and reliable crimps on cable lugs.

What are the power requirements for operating the WPM-50T crimper?

The WPM-50T operates on standard AC 220V power. It is a semi-automatic machine that utilizes a hydraulic system, often assisted by AirTac pneumatic components for efficient operation, making it ready for integration into most industrial workshop environments.

What are the key benefits of using this hydraulic crimping machine for cable lugs?

Key benefits include high efficiency for industrial manufacturing, consistent and high-quality crimps due to the 20T hydraulic force, durability from quality components like AirTac parts, and versatility across a broad wire range (10-120mm²). It significantly improves productivity and connection reliability in cable harness production.

Is the WPM-50T a manual or automatic crimping machine?

The WPM-50T is a semi-automatic hydraulic crimping machine. It automates the powerful crimping action via its hydraulic system, while the operator positions the cable and lug. This design offers an optimal balance of operator control, speed, and consistent, high-force crimping performance for industrial use.
